SUPPLEMENTARY INFORMATION:

Background

The MMPA prohibits the “take” of marine mammals, with certain exceptions. Section 101(a)(5)(A) and (D) of the MMPA (16 U.S.C. 1361 et seq.) directs the Secretary of Commerce (as delegated to NMFS) to allow, upon request, the incidental, but not intentional, taking of small numbers of marine mammals by U.S. citizens who engage in a specified activity (other than commercial fishing) within a specified geographical region if certain findings are made and either regulations are proposed or, if the taking is limited to harassment, a notice of a proposed IHA is provided to the public for review.

Authorization for incidental takings shall be granted if NMFS finds that the taking will have a negligible impact on the species or stock(s) and will not have an unmitigable adverse impact on the availability of the species or stock(s) for taking for subsistence uses (where relevant). If such findings are made, NMFS must prescribe the permissible methods of taking; other “means of effecting the least practicable adverse impact” on the affected species or stocks and their habitat, paying particular attention to rookeries, mating grounds, and areas of similar significance, and on the availability of the species or stocks for taking for certain subsistence uses (referred to as “mitigation”); and requirements pertaining to the monitoring and reporting of the takings. The definitions of all applicable MMPA statutory terms used above are included in the relevant sections below (see also 16 U.S.C. 1362; 50 CFR 216.3, 216.103).

National Environmental Policy Act

To comply with the National Environmental Policy Act of 1969 (NEPA; 42 U.S.C. 4321 et seq.) and NOAA Administrative Order (NAO) 216-6A, NMFS must review our proposed action ( i.e., the issuance of an IHA) with respect to potential impacts on the human environment.

This action is consistent with categories of activities identified in Categorical Exclusion B4 (IHAs with no anticipated serious injury or mortality) of the Companion Manual for NAO 216-6A, which do not individually or cumulatively have the potential for significant impacts on the quality of the human environment and for which we have not identified any extraordinary circumstances that would preclude this categorical exclusion. Accordingly, NMFS has preliminarily determined that the issuance of the proposed IHA qualifies to be categorically excluded from further NEPA review.

Summary of Request

On March 12, 2026, NMFS received an email request from the Navy for an IHA to take marine mammals incidental to impact pile driving and vibratory pile removal on the East River at the naval submarine base NSB Kings Bay, Georgia. Following NMFS' review of the application, the Navy submitted two revised versions on July 9, 2026, and on August 4, 2026. The application was deemed adequate and complete on August 17, 2026. The Navy's request is for take of Tamanend's bottlenose dolphins ( Tursiops erebennus) from the Southern Georgia Estuarine System (SGES) stock by Level B harassment only. Neither the Navy nor NMFS expect serious injury or mortality to result from this activity and, therefore, an IHA is appropriate.

NMFS previously issued 5-year regulations and an associated Letter of Authorization to the Navy for similar work at NSB Kings Bay (82 FR 26360, June 7, 2017; 82 FR 39568, August 21, 2017). The letter of authorization (LOA) expired on July 11, 2022. Information regarding the Navy's activities under that previous LOA may be found on NMFS web page at: www.fisheries.noaa.gov/​action/​incidental-take-authorization-us-navy-submarine-base-kings-bay-waterfront-construction-kings.

Description of Proposed Activity

Overview

NSB Kings Bay on the East River in Georgia is the sole homeport on the east coast of the United States that was built to support the repair and maintenance of Trident Ship Submersible Ballistic and Nuclear-Powered Guided Missile Submarines. The waterfront infrastructure at the TRF wharf interface has severely degraded; the steel piles are corroded, and the concrete structures are spalling and delaminating. To maintain crucial submarine servicing capacity, the Navy proposes the TRF wharf interface repairs project to remove existing structures and replace them with new structures at the east and west wharfs. The east wharf consists of two concrete dolphin piers supported by steel piles, walkway ramps, mooring hardware, a fender system, a submerged caisson mooring pad, and the caisson gate mooring dock. The west wharf consists of three steel pile coffer cells, a concrete caisson, and hotel barge mooring system. In-water construction is planned to occur over a 1-year period, spanning 54 non-consecutive days.

Activities that have the potential to cause incidental take of marine mammals include vibratory pile removal of existing steel H-piles and impact driving new, permanent concrete piles. These activities may result in the incidental take of one stock of marine mammals, specifically the SGES stock of Tamanend's bottlenose dolphins, by Level B harassment only. No Level A harassment, serious injury, or mortality is expected or proposed for authorization. ( printed page 66297)

Dates and Duration

The proposed IHA would be valid for the statutory maximum of 1 year from the date of effectiveness. It will become effective upon written notification from the applicant to NMFS but not beginning later than 1 year from the date of issuance or extending beyond 2 years from the date of issuance. The specified activities are expected to occur over 54 non-consecutive days between January 2027 to December 2027, during daylight hours from 1 hour after sunrise to 1 hour before sunset. However, project delays may occur due to a number of factors, including project funding, permitting requirements, availability of equipment and/or materials, weather-related delays, equipment maintenance and/or repair, transit to and from ports to survey locations, and other contingencies.

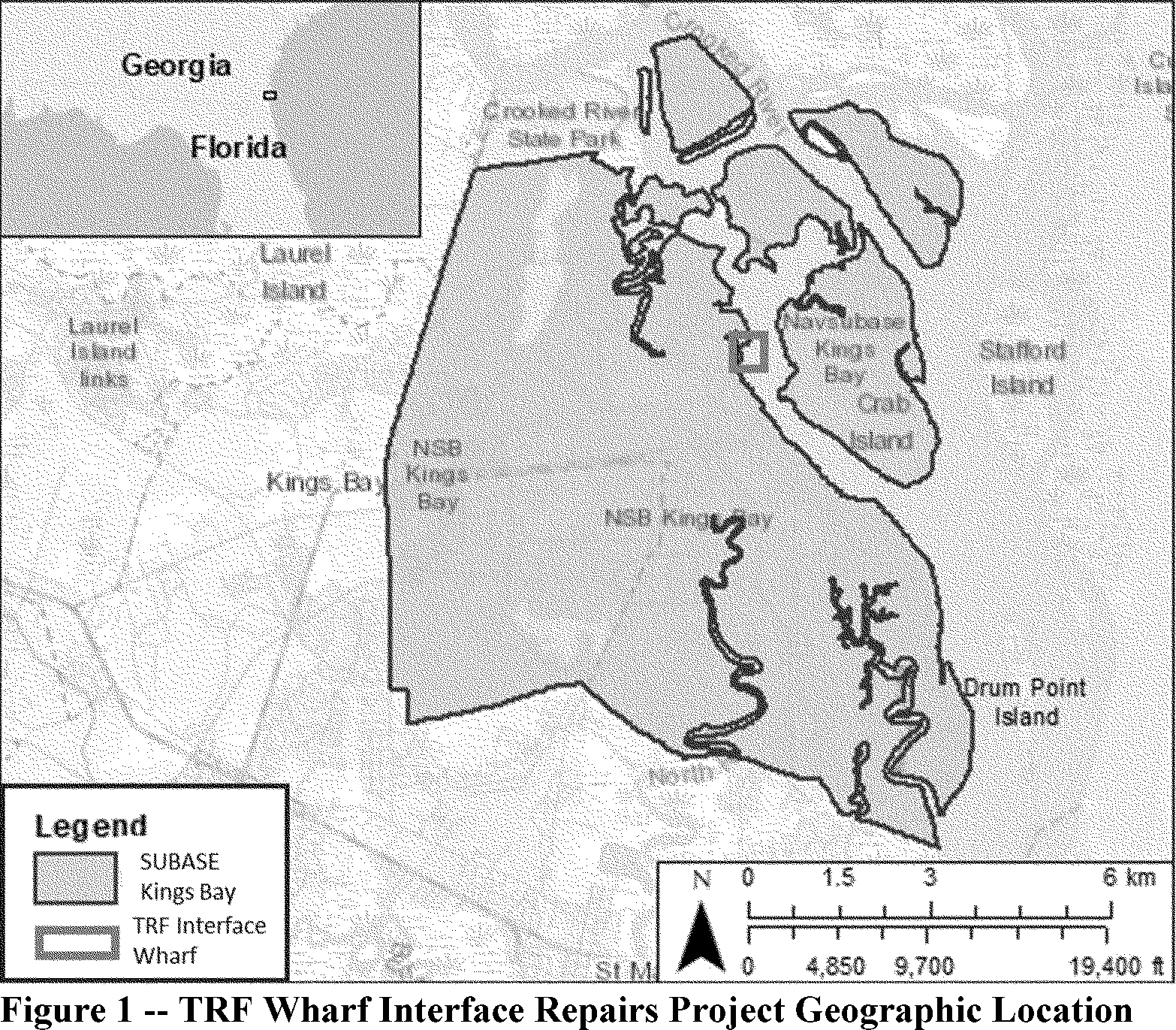

Specific Geographic Region

The Navy would replace infrastructure at NSB Kings Bay in the East River, situated in the eastern corner of Georgia, approximately 13 kilometers (km) north of the Florida-Georgia border, and approximately 14.8 km upstream from the Atlantic Ocean (figure 1). NSB Kings Bay encompasses a 16,000-acre area that provides berthing facilities and support services for naval submarines and other assets. The area is restricted to general public access and includes the East River and adjacent waters of the Cumberland Sound between Marianna Creek to the north and Mill creek to the south. However, the ensonified areas for the specified activities would not extend beyond the East River.

The environment of NSB Kings Bay is estuarine, receives saltwater inputs from tidal exchange with the ocean, and freshwater inputs from rivers, tributaries, and stormwater outfalls. The area has a large tidal range and contains strong currents which results in tidal mixing with water refreshed daily. See section 2 of the Navy's application for more detailed information.

Detailed Description of the Specified Activity

Construction activities at NSB Kings Bay for the TRF wharf repairs project would occur at the east wharf interface, the east wharf interface dolphin piers, and the west wharf interface. Construction would involve the following repairs:

• Corrosion repair of concrete structures;
• Repair of deteriorated concrete piles;
• Creation of concrete fascia to protect existing coffer cells from further concrete corrosion;
• Demolition of the existing fender system and installation of a new fender system at the mooring dolphin piers, including the cleaning and installation of hardware, as needed;
• Removal of corroded steel H-piles along the east and west wharf; and
• Installation of new concrete piles for a new fender system along the east and west wharf.

For in-water construction, a total of 102 degraded 14-inch steel H-piles will be removed with a vibratory hammer, and then 112 20-inch square concrete replacement piles will be installed with an impact hammer (tables 1 and 2). Both pile removal and pile installation activities may occur on the same day but they will not occur simultaneously. If concrete piles are unable to reach ( printed page 66298) embedment depth with an impact hammer, these piles will be removed with direct pull methods, and then an auger will be used to drill through the limestone layers. Finally, these piles will be reinstalled with an impact hammer to reach embedment depth. Augering and other construction activities listed above, except vibratory pile removal and impact pile driving, are not expected to produce underwater sound at high enough levels or at a long enough duration to result in the incidental take of marine mammals. Therefore, these activities are not discussed further.

For the east wharf interface (excluding the dolphin pier), 33 14-inch steel H-piles from the existing fender mooring system will be removed with a vibratory hammer over 6 days. Following removal, 35 20-inch square concrete piles for a new fender mooring system will be installed with an impact hammer over 11 days. Total in-water construction for the east wharf interface will occur over 17 non-consecutive days.

For the east wharf interface dolphin pier, six 14-inch steel H-Piles will be removed with a vibratory hammer over 2 days, and six 20-inch square concrete piles would be installed with an impact hammer over 2 days. To maintain the dolphin piers structural integrity during construction, activities will not be conducted in an entirely sequential manner. Instead, the Navy will remove four initial steel H-piles, install four replacement concrete piles, remove the last two steel H-piles, and install the last two concrete piles. Total in-water construction for the east wharf interface dolphin pier will occur over a total of 4 non-consecutive days.

For the west wharf interface, 63 14-inch steel H-piles will be removed with a vibratory hammer for over 10 days, and 71 20-inch square concrete piles will be installed with an impact hammer for the new fender mooring system over 23 days. Total in-water construction for the west wharf interface will occur over a total of 33 non-consecutive days.

Incidental take of marine mammals by Level B behavioral harassment could occur from vibratory pile removal and impact pile installation.

Proposed mitigation, monitoring, and reporting measures are described in detail later in this document (please see Proposed Mitigation and Proposed Monitoring and Reporting sections).

Description of Marine Mammals in the Area of Specified Activities

Sections 3 and 4 of the application summarize available information regarding status and trends, distribution and habitat preferences, and behavior and life history of the potentially affected species. NMFS fully considered all of this information, and we refer the reader to these descriptions, instead of reprinting the information. Additional information regarding population trends and threats may be found in NMFS' Stock Assessment Reports (SARs) ( www.fisheries.noaa.gov/​national/​marine-mammal-protection/​marine-mammal-stock-assessments) and more general information about these species ( e.g., physical and behavioral descriptions) may be found on NMFS' website ( www.fisheries.noaa.gov/​find-species).

Table 3 lists the species and stock for which take is likely and proposed to be authorized for this activity and summarizes information related to the population or stock, including regulatory status under the MMPA and Endangered Species Act (ESA) and potential biological removal (PBR), where known. PBR is defined by the MMPA as the maximum number of animals, not including natural mortalities, that may be removed from a marine mammal stock while allowing that stock to reach or maintain its optimum sustainable population (as described in NMFS' SARs). While no serious injury or mortality is anticipated or proposed to be authorized here, PBR and annual mortality and serious injury (M/SI) from anthropogenic sources are included here as gross indicators of the status of the species or stocks and other threats.

Marine mammal abundance estimates presented in this document represent the total number of individuals that make up a given stock or the total number estimated within a particular study or survey area. NMFS' stock abundance estimates for most species represent the total estimate of individuals within the geographic area, if known, that comprises that stock. For some species, this geographic area may extend beyond U.S. waters. All managed stocks in this region are assessed in NMFS' U.S. Atlantic Ocean and Gulf of America SARs. All values presented in table 3 are the most recent available at the time of publication (including from ( printed page 66299) the final 2024 SARs) and are available online at: www.fisheries.noaa.gov/​national/​marine-mammal-protection/​marine-mammal-stock-assessments.

As indicated above, only Tamanend's bottlenose dolphins from the SGES stock overlap temporally and spatially with the specified activity to the extent that take is likely (table 3). All species that could potentially occur in the proposed project areas are included table 4 of the IHA application. While table 4 of the Navy's application lists Tamanend's bottlenose dolphins from the Northern Georgia/Southern South Carolina Estuarine System (NGSCES), Central Georgia Estuarine System (CGES), and Jacksonville Estuarine System (JES) stocks as 'rare' in the project area, NMFS disagrees with this characterization because their spatial distribution does not overlap with the action area. Because their spatial and temporal ranges do not overlap with the specified activity, they are not expected to occur, take is not expected, and these stocks are not discussed further beyond the explanation provided here.

Specifically, the NGSCES stock's distribution ranges from the North Edisto River to the northern extent of Ossabaw Sound (approximately 64 nautical miles (nmi) north); the CGES stock's distribution ranges from Ossabaw Sound to the Altamaha Sound (approximately 38 nmi north); and the JES stock's distribution ranges from the Florida/Georgia border at Cumberland Sound to Jacksonville Beach, Florida (approximately 5.5 nmi south). Because the spatial distributions of these three stocks do not overlap with the project area, and harassment zones are fully encompassed within the East River, take of these stocks is not expected or proposed to be authorized.

In addition, the West Indian manatee may be found in the East River in Georgia; however, West Indian manatees are managed by the U.S. Fish and Wildlife Service and are not considered further in this document.

Bottlenose dolphins frequently occur in estuarine and nearshore waters of southern Georgia, including the East River and the Cumberland Sound. Atlantic coastal and estuarine bottlenose dolphins were recategorized as Tamanend's bottlenose dolphins ( Tursiops erebennus) by Costa et al. (2022). All bottlenose dolphins occurring within the project area are expected to belong to the SGES stock. The SGES stock geographic distribution is bounded by the Altamaha Sound to the north, the Florida/Georgia border in the Cumberland Sound to the south, and coastal waters within 1 km of shore (NMFS, 2023a). Because this stock has small geographic range, this area of southern Georgia is designated as a Small and Resident Population Biologically Important Area (BIA), encompassing approximately 410 km² .

Speakman et al. (2023) conducted vessel-based dolphin photo-identification surveys from April 2010 through May 2021 in estuarine and nearshore coastal waters (<5 km) from the Altamaha Sound to the Florida/Georgia border, encompassing the entirety of the SGES stock range. Their research confirmed high year-round site fidelity and localized residency within this estuarine system, supporting stock boundaries and presence. Across the 163 surveys, 768 distinctively marked photo-identified individual dolphins were documented (with a discovery curve that did not asymptote, indicating a larger population). Additionally, Speakman et al. (2023) performed a cluster analysis on individual dolphins (n=98) that were sighted at least 10 times, which identified 5 distinct social clusters. Across all five social clusters, the mean group size was 6.7 animals. While two social clusters have utilization distributions in the general surrounding region, fine-scale spatial mapping indicates that the core range of only one social cluster directly overlaps the project area (located within 2 nmi). The second social cluster's range lies farther away, outside the primary area of project effects. Consequently, project activities are expected to impact individuals from only this single overlapping social cluster.

The SGES stock dolphins utilize river estuaries, river channels, and tidal creeks between the Altamaha Sound and Cumberland Sound primarily for foraging, socializing, and transiting (Balmer et al., 2013; NMFS, 2023a). ( printed page 66300) Local observations by subject matter experts (SMEs) at NSB Kings Bay confirm regular dolphin presence, with SMEs routinely observing two to three groups of dolphins daily in the project vicinity, where typical group sizes range from three to four individuals. Based on these local SME observations and known estuarine habitat use, individuals from this specific social cluster are expected to occur in the project area daily during the specified activities.

Marine Mammal Hearing

Hearing is the most important sensory modality for marine mammals underwater, and exposure to anthropogenic sound can have deleterious effects. To appropriately assess the potential effects of exposure to sound, it is necessary to understand the frequency ranges marine mammals are able to hear. Not all marine mammal species have equal hearing capabilities ( e.g., Richardson et al., 1995; Wartzok and Ketten, 1999; Au and Hastings, 2008). To reflect this, Southall et al. (2007; 2019) recommended that marine mammals be divided into hearing groups based on directly measured (behavioral or auditory evoked potential techniques) or estimated hearing ranges (behavioral response data, anatomical modeling, etc.). Generalized hearing ranges were chosen based on the approximately 65-decibel (dB) threshold from composite audiograms, previous analyses in NMFS (2018), and/or data from Southall et al. (2007; 2019). We note that the names of two hearing groups and the generalized hearing ranges of all marine mammal hearing groups have been recently updated (NMFS, 2024) as reflected below in table 4.

For more detail concerning these groups and associated frequency ranges, please see NMFS (2024) for a review of available information.

Potential Effects of Specified Activities on Marine Mammals and Their Habitat

This section components of the specified activity may impact marine mammals and their habitat. The Estimated Take of Marine Mammals section includes a quantitative analysis of the number of individuals that are expected to be taken by this activity. The Negligible Impact Analysis and Determination section considers the content of this section, the Estimated Take of Marine Mammals section, and the Proposed Mitigation section to draw conclusions regarding the likely impacts of these activities on the reproductive success or survivorship of individuals and whether those impacts are reasonably expected to, or reasonably likely to, adversely affect the species or stock through effects on annual rates of recruitment or survival.

Description of Sound Sources

The marine soundscape is comprised of both ambient and anthropogenic sounds. Ambient sound is defined as the all-encompassing sound in a given place and is usually a composite of sound from many sources both near and far (American National Standards Institute (ANSI), 1995). The sound level of an area is defined by the total acoustic energy being generated by known and unknown sources. These sources may include physical ( e.g., waves, wind, precipitation, earthquakes, ice, atmospheric sound), biological ( e.g., sounds produced by marine mammals, fish, and invertebrates), and anthropogenic sound ( e.g., vessels, dredging, aircraft, construction).

The sum of the various natural and anthropogenic sound sources at any given location and time—which comprise “ambient” or “background” sound—depends not only on the source levels (as determined by current weather conditions and levels of biological and shipping activity) but also on the ability of sound to propagate through the environment. In turn, sound propagation is dependent on the spatially and temporally varying properties of the water column and sea floor and is frequency dependent. As a result of the dependence on a large number of varying factors, ambient sound levels can be expected to vary widely over both coarse and fine spatial and temporal scales. Sound levels at a given frequency and location can vary by 10-20 dB from day to day (Richardson et al., 1995). The result is that, depending on the source type and its intensity, sound from the specified activities may be a negligible addition to the local environment or could form a distinctive signal that may affect marine mammals.

In-water construction associated with the proposed project would include vibratory pile removal and impact pile driving. The sounds produced by these activities fall into one of two general sound types: impulsive and non-impulsive (defined below). The distinction between these two sound types is important because they have differing potential to cause physical effects, particularly with regard to hearing ( e.g., Ward, 1997, in Southall et al., 2007). Please see Southall et al. (2007) for an in-depth discussion of these concepts.

Impulsive sound sources ( e.g., explosions, gunshots, sonic booms, impact pile driving) are brief (typically considered to be less than 1 second), broadband, atonal transients (ANSI, 1986; National Institute for Occupational Safety and Health (NIOSH), 1998; International Organization for Standardization (ISO) 2017; ANSI, 2005; NMFS, 2018) and occur either as isolated events or repeated in some succession. Impulsive sounds are all characterized by a relatively rapid rise from ambient pressure to a maximal pressure value ( printed page 66301) followed by a rapid decay period that may include a period of diminishing, oscillating maximal and minimal pressures, and generally have an increased capacity to induce physical injury as compared with sounds that lack these features.

Non-impulsive sounds ( e.g., aircraft, machinery operations such as drilling or dredging, vibratory pile driving, and active sonar systems) can be broadband, narrowband or tonal, brief or prolonged (continuous or intermittent), and typically do not have the high peak sound pressure with rapid rise/decay time that impulsive sounds do (ANSI, 1995; NIOSH, 1998; NMFS, 2018). The distinction between these two sound types is important because they have differing potential to cause physical effects, particularly with regard to hearing ( e.g., Ward, 1997, in Southall et al., 2007).

The Navy's TRF wharf interface repairs project would include the use of an impact hammer for pile installation and a vibratory hammer for pile removal. Impact hammers operate by repeatedly dropping a heavy piston onto a pile to drive the pile into the substrate. Sound generated by impact hammers is characterized by rapid rise times and high peak levels, a potentially injurious combination (Hastings and Popper, 2005). Vibratory hammers are used to remove piles by using vibration to break the sediment friction, which then allows a crane to vertically pull the piles out. Sounds produced by vibratory hammers are non-impulsive; compared to sounds produced by impact hammers, they have a slower rise time, reducing the probability and severity of injury, and the sound energy is distributed over a greater amount of time (Nedwell and Edwards, 2002; Carlson et al., 2005).

The likely or possible impacts of the Navy's proposed activities on the mammals could involve both non-acoustic and acoustic stressors. Potential non-acoustic stressors could result from the physical presence of the equipment and personnel; however, any impacts to marine mammals are expected to primarily be acoustic in nature.

Potential Effects of Underwater Sound on Marine Mammals

The introduction of anthropogenic noise into aquatic environment from pile driving and pile removal is the means by which marine mammals may be harassed from the Navy's specified activities. Anthropogenic sounds span a broad range of frequencies and sound levels and can have a range of highly variable impacts on marine life from none or minor to potentially severe responses depending on received levels, duration of exposure, behavioral context, and various other factors. Broadly, underwater sound from active acoustic sources, such as those in the project, can potentially result in one or more of the following: temporary or permanent hearing impairment, non-auditory physical or physiological effects, behavioral disturbance, stress, and masking (Richardson et al., 1995; Gordon et al., 2003; Nowacek et al., 2007; Southall et al., 2007; Götz et al., 2009).

We describe the more severe effects of certain non-auditory physical or physiological effects only briefly as we do not expect that use of impact and vibratory pile driving hammers are reasonably likely to result in such effects (see below for further discussion). Potential effects from impulsive sound sources can range in severity from effects such as behavioral disturbance or tactile perception to physical discomfort, slight injury of the internal organs and the auditory system, or mortality (Yelverton et al., 1973). Non-auditory physiological effects or injuries that theoretically might occur in marine mammals exposed to high level underwater sound or as a secondary effect of extreme behavioral reactions ( e.g., change in dive profile as a result of an avoidance reaction) caused by exposure to sound include neurological effects, bubble formation, resonance effects, and other types of organ or tissue damage (Cox et al., 2006; Southall et al., 2007; Zimmer and Tyack, 2007; Tal et al., 2015). The specified activities considered here do not involve the use of devices such as explosives or mid-frequency tactical sonar that are associated with these types of effects.

In general, animals exposed to natural or anthropogenic sound may experience physical and psychological effects, ranging in magnitude from none to severe (Southall et al., 2007; 2019). Exposure to anthropogenic noise has the potential to result in auditory threshold shifts (TS) and behavioral reactions ( e.g., avoidance, temporary cessation of foraging and vocalizing, changes in dive behavior). It can also lead to non-observable physiological responses, such an increase in stress hormones. Additional noise in a marine mammal's habitat can mask acoustic cues used by marine mammals to carry out daily functions, such as communication and predator and prey detection.

The degree of effect of an acoustic exposure on marine mammals is dependent on several factors, including, but not limited to, sound type ( e.g., impulsive vs. non-impulsive), signal characteristics, the species, age and sex class ( e.g., adult male vs. mom with calf), duration of exposure, the distance between the noise source and the animal, received levels, behavioral state at time of exposure, and previous history with exposure (Wartzok et al., 2004; Southall et al., 2007). In general, sudden, high-intensity sounds can cause hearing loss as can longer exposures to lower-intensity sounds. Moreover, any temporary or permanent loss of hearing, if it occurs at all, will occur almost exclusively for noise within an animal's hearing range. We describe below the specific manifestations of acoustic effects that may occur based on the activities proposed by the Navy.

Richardson et al. (1995) described zones of increasing intensity of effect that might be expected to occur in relation to distance from a source and assuming that the signal is within an animal's hearing range. First (at the greatest distance) is the area within which the acoustic signal would be audible (potentially perceived) to the animal but not strong enough to elicit any overt behavioral or physiological response. The next zone (closer to the receiving animal) corresponds with the area where the signal is audible to the animal and of sufficient intensity to elicit behavioral or physiological responsiveness. The third is a zone within which, for signals of high intensity, the received level is sufficient to potentially cause discomfort or tissue damage to auditory or other systems. Overlaying these zones to a certain extent is the area within which masking ( i.e., when a sound interferes with or masks the ability of an animal to detect a signal of interest that is above the absolute hearing threshold) may occur; the masking zone may be highly variable in size.

Below, we provide additional details regarding potential impacts on marine mammals and their habitat from noise in general, starting with hearing impairment, as well as from the specific activities the Navy plans to conduct, to the degree it is available.

Hearing Threshold Shift —NMFS defines a noise-induced TS as a change, usually an increase, in the threshold of audibility at a specified frequency or portion of an individual's hearing range above a previously established reference level (NMFS, 2018, 2024). The amount of TS is customarily expressed in dB. A TS can be permanent or temporary. As described in NMFS (2018, 2024) there are numerous factors to consider when examining the consequence of TS, including, but not limited to, the signal temporal pattern ( e.g., impulsive or non-impulsive), likelihood an individual would be exposed for a long enough ( printed page 66302) duration or to a high enough level to induce a TS, the magnitude of the TS, time to recovery (seconds to minutes or hours to days), the frequency range of the exposure ( i.e., spectral content), the hearing frequency range of the exposed species relative to the signal's frequency spectrum ( i.e., how animal uses sound within the frequency band of the signal; e.g., Kastelein et al., 2014), and the overlap between the animal and the source ( e.g., spatial, temporal, and spectral).

Auditory Injury (AUD INJ) —NMFS (2024) defines AUD INJ as damage to the inner ear that can result in destruction of tissue, such as the loss of cochlear neuron synapses or auditory neuropathy (Houser, 2021; Finneran, 2024). AUD INJ may or may not result in a permanent threshold shift (PTS). PTS is subsequently defined as a permanent, irreversible increase in the threshold of audibility at a specified frequency or portion of an individual's hearing range above a previously established reference level (NMFS, 2024). PTS does not generally affect more than a limited frequency range, and an animal that has incurred PTS has some level of hearing loss at the relevant frequencies; typically, animals with PTS or other AUD INJ are not functionally deaf (Au and Hastings, 2008; Finneran, 2016). Available data from humans and other terrestrial mammals indicate that a 40-dB TS approximates AUD INJ onset (Ward et al., 1958, 1959; Ward, 1960; Kryter et al., 1966; Miller, 1974; Ahroon et al., 1996; Henderson et al., 2008). AUD INJ levels for marine mammals are estimates, as with the exception of a single study unintentionally inducing PTS in a harbor seal ( Phoca vitulina) (Kastak et al., 2008), there are no empirical data measuring AUD INJ in marine mammals largely due to the fact that, for various ethical reasons, experiments involving anthropogenic noise exposure at levels inducing AUD INJ are not typically pursued or authorized (NMFS, 2024).

Temporary Threshold Shift (TTS) —TTS is a temporary, reversible increase in the threshold of audibility at a specified frequency or portion of an individual's hearing range above a previously established reference level (NMFS, 2024), and is not considered an AUD INJ. Based on data from marine mammal TTS measurements (Southall et al., 2007; 2019), a TTS of 6 dB is considered the minimum TS clearly larger than any day-to-day or session-to-session variation in a subject's normal hearing ability (Finneran et al., 2000, 2002; Schlundt et al., 2000). As described in Finneran (2015), marine mammal studies have shown the amount of TTS increases with the 24-hour cumulative sound exposure level (SEL₂₄) in an accelerating fashion: at low exposures with lower SEL₂₄, the amount of TTS is typically small, and the growth curves have shallow slopes. At exposures with higher SEL₂₄, the growth curves become steeper and approach linear relationships with the sound exposure level (SEL).

Depending on the degree (elevation of threshold in dB), duration ( i.e., recovery time), and frequency range of TTS, and the context in which it is experienced, TTS can have effects on marine mammals ranging from discountable to serious (similar to those discussed in auditory masking, below). For example, a marine mammal may be able to readily compensate for a brief, relatively small amount of TTS in a non-critical frequency range that takes place during a time when the animal is traveling through the open ocean, where ambient noise is lower and there are not as many competing sounds present. Alternatively, a larger amount and longer duration of TTS sustained during a time when communication is critical for successful mother/calf interactions could have more serious impacts. We note that reduced hearing sensitivity as a simple function of aging has been observed in marine mammals, as well as humans and other taxa (Southall et al., 2007), so we can infer that strategies exist for coping with this condition to some degree, though likely not without cost.

Many studies have examined noise-induced hearing loss in marine mammals (see Finneran (2015) and Southall et al. (2019) for summaries). TTS is the mildest form of hearing impairment that can occur during exposure to sound. While experiencing TTS, the hearing threshold rises, and a sound must be at a higher level in order to be heard. In terrestrial and marine mammals, TTS can last from minutes or hours to days (in cases of strong TTS). In many cases, hearing sensitivity recovers rapidly after exposure to the sound ends. For cetaceans, published data on the onset of TTS are limited to captive bottlenose dolphin ( Tursiops truncatus), beluga whale ( Delphinapterus leucas), harbor porpoise ( Phocoena phocoena), and Yangtze finless porpoise ( Neophocoena asiaeorientalis) (Southall et al., 2019). For pinnipeds in water, measurements of TTS are limited to harbor seals, elephant seals ( Mirounga angustirostris), bearded seals ( Erignathus barbatus), and California sea lions ( Zalophus californianus) (Kastak et al., 2007; Kastelein et al., 2019b, 2019c, 2022a, 2022b; Reichmuth et al., 2019; Sills et al., 2020). TTS was not observed in spotted ( Phoca largha) and ringed ( Pusa hispida) seals exposed to single airgun impulse sounds at levels matching previous predictions of TTS onset (Reichmuth et al., 2016). These studies examine hearing thresholds measured in marine mammals before and after exposure to intense or long-duration sound exposures. The difference between the pre-exposure and post-exposure thresholds can be used to determine the amount of TS at various post-exposure times.

The amount and onset of TTS depends on the exposure frequency. Sounds below the region of best sensitivity for a species or hearing group are less hazardous than those near the region of best sensitivity (Finneran and Schlundt, 2013). At low frequencies, onset-TTS exposure levels are higher compared to those in the region of best sensitivity ( i.e., a low frequency noise would need to be louder to cause TTS onset when TTS exposure level is higher), as shown for harbor porpoises and harbor seals (Kastelein et al., 2019a, 2019c). Note that in general, harbor seals and harbor porpoises have a lower TTS onset than other measured pinniped or cetacean species (Finneran, 2015). In addition, TTS can accumulate across multiple exposures, but the resulting TTS will be less than the TTS from a single, continuous exposure with the same SEL (Mooney et al., 2009; Finneran et al., 2010; Kastelein et al., 2014, 2015). This means that TTS predictions based on the total, SEL₂₄ will overestimate the amount of TTS from intermittent exposures, such as sonars and impulsive sources. Nachtigall et al. (2018) describe measurements of hearing sensitivity of multiple odontocete species (bottlenose dolphin, harbor porpoise, beluga, and false killer whale ( Pseudorca crassidens)) when a relatively loud sound was preceded by a warning sound. These captive animals were shown to reduce hearing sensitivity when warned of an impending intense sound. Based on these experimental observations of captive animals, the authors suggest that wild animals may dampen their hearing during prolonged exposures or if conditioned to anticipate intense sounds. Another study showed that echolocating animals (including odontocetes) might have anatomical specializations that might allow for conditioned hearing reduction and filtering of low-frequency ambient noise, including increased stiffness and control of middle ear structures and placement of inner ear structures (Ketten et al., 2021). Data available on ( printed page 66303) noise-induced hearing loss for mysticetes are currently lacking (NMFS, 2024). Additionally, the existing marine mammal TTS data come from a limited number of individuals within these species.

Relationships between TTS and PTS thresholds have not been studied in marine mammals, but such relationships are assumed to be similar to those in humans and other terrestrial mammals. PTS typically occurs at exposure levels at least several dB above that inducing mild TTS ( e.g., a 40-dB TS approximates PTS onset (Kryter et al., 1966; Miller, 1974), while a 6-dB TS approximates TTS onset (Southall et al., 2007; 2019). Based on data from terrestrial mammals, a precautionary assumption is that the PTS thresholds for impulsive sounds (such as impact pile driving pulses as received close to the source) are at least 6 dB higher than the TTS threshold on a peak-pressure basis and PTS SEL₂₄ thresholds are 15 to 20 dB higher than TTS SEL₂₄ sound exposure level thresholds (Southall et al., 2007; 2019). Given the higher level of sound or longer exposure duration necessary to cause PTS as compared with TTS, it is considerably less likely that PTS could occur.

Behavioral Effects —Exposure to noise also has the potential to behaviorally disturb marine mammals to a level that rises to the definition of harassment under the MMPA. Generally speaking, NMFS considers a behavioral disturbance that rises to the level of harassment under the MMPA a non-minor response—in other words, not every response qualifies as behavioral disturbance, and for responses that do, those of a higher level, or accrued across a longer duration, have the potential to affect foraging, reproduction, or survival. Behavioral disturbance may include a variety of effects, including subtle changes in behavior ( e.g., minor or brief avoidance of an area or changes in vocalizations), more conspicuous changes in similar behavioral activities, and more sustained and/or potentially severe reactions, such as displacement from or abandonment of high-quality habitat. Behavioral responses may include changing durations of surfacing and dives, changing direction and/or speed; reducing/increasing vocal activities; changing/cessation of certain behavioral activities (such as socializing or feeding); eliciting a visible startle response or aggressive behavior (such as tail/fin slapping or jaw clapping); and avoidance of areas where sound sources are located. In addition, pinnipeds may increase their haul out time, possibly to avoid in-water disturbance (Thorson and Reyff, 2006).

Behavioral responses to sound are highly variable and context-specific and any reactions depend on numerous intrinsic and extrinsic factors ( e.g., species, state of maturity, experience, current activity, reproductive state, auditory sensitivity, time of day), as well as the interplay between factors ( e.g., Richardson et al., 1995; Wartzok et al., 2004; Southall et al., 2007; 2019; Weilgart, 2007; Archer et al., 2010). Behavioral reactions can vary not only among individuals but also within an individual, depending on previous experience with a sound source, context, and numerous other factors (Ellison et al., 2012), and can vary depending on characteristics associated with the sound source ( e.g., whether it is moving or stationary, number of sources, distance from the source). In general, pinnipeds seem more tolerant of, or at least habituate more quickly to, potentially disturbing underwater sound than do cetaceans, and generally seem to be less responsive to exposure to industrial sound than most cetaceans. Please see appendices B and C of Southall et al. (2007) and Gomez et al. (2016) for reviews of studies involving marine mammal behavioral responses to sound.

Habituation can occur when an animal's response to a stimulus wanes with repeated exposure, usually in the absence of unpleasant associated events (Wartzok et al., 2003). Animals are most likely to habituate to sounds that are predictable and unvarying. It is important to note that habituation is appropriately considered as a “progressive reduction in response to stimuli that are perceived as neither aversive nor beneficial,” rather than as, more generally, moderation in response to human disturbance (Bejder et al., 2009). The opposite process is sensitization, when an unpleasant experience leads to subsequent responses, often in the form of avoidance, at a lower level of exposure.

As noted above, behavioral state may affect the type of response. For example, animals that are resting may show greater behavioral change in response to disturbing sound levels than animals that are highly motivated to remain in an area for feeding (Richardson et al., 1995; Wartzok et al., 2003; National Research Council (NRC), 2005). Controlled experiments with captive marine mammals have shown pronounced behavioral reactions, including avoidance of loud sound sources (Ridgway et al., 1997). Observed responses of wild marine mammals to loud-pulsed sound sources ( e.g., seismic airguns) have been varied but often consist of avoidance behavior or other behavioral changes (Richardson et al., 1995; Morton and Symonds, 2002; Nowacek et al., 2007).

Available studies show wide variation in response to underwater sounds; therefore, it is difficult to predict specifically how any given sound in a particular instance might affect marine mammals perceiving the signal ( e.g., Erbe et al., 2019). If a marine mammal does react briefly to an underwater sound by changing its behavior or moving a small distance, the impacts of the change are unlikely to be significant to the individual, let alone the stock or population. If a sound source displaces marine mammals from an important feeding or breeding area for a prolonged period, impacts on individuals and populations could be significant ( e.g., Lusseau and Bejder, 2007; Weilgart, 2007; NRC, 2005). However, there are broad categories of potential response, which we describe in greater detail here, that include alteration of dive behavior, alteration of foraging behavior, effects to breathing, interference with or alteration of vocalization, avoidance, and flight.

Avoidance and Displacement —Changes in dive behavior can vary widely and may consist of increased or decreased dive times and surface intervals as well as changes in the rates of ascent and descent during a dive ( e.g., Frankel and Clark, 2000; Costa et al., 2003; Ng and Leung, 2003; Nowacek et al., 2004; Goldbogen et al., 2013a, 2013b; Blair et al., 2015). Variations in dive behavior may reflect interruptions in biologically significant activities ( e.g., foraging) or they may be of little biological significance. The impact of an alteration to dive behavior resulting from an acoustic exposure depends on what the animal is doing at the time of the exposure and the type and magnitude of the response.

Disruption of feeding behavior can be difficult to correlate with anthropogenic sound exposure, so it is usually inferred by observed displacement from known foraging areas, the appearance of secondary indicators ( e.g., bubble nets or sediment plumes), or changes in dive behavior. Acoustic and movement bio-logging tools also have been used in some cases to infer responses to anthropogenic noise. For example, Blair et al. (2015) reported significant effects on humpback whale ( Megaptera novaeangliae) foraging behavior in Stellwagen Bank in response to ship noise including slower descent rates, and fewer side-rolling events per dive with increasing ship noise. In addition, Wisniewska et al. (2016) reported that tagged harbor porpoises demonstrated fewer prey capture attempts when encountering occasional high-noise ( printed page 66304) levels resulting from vessel noise as well as more vigorous fluking, interrupted foraging, and cessation of echolocation signals observed in response to some high-noise vessel passes. As for other types of behavioral response, the frequency, duration, and temporal pattern of signal presentation, as well as differences in species sensitivity, are likely contributing factors to differences in response in any given circumstance ( e.g., Croll et al., 2001; Nowacek et al., 2004; Madsen et al., 2006; Yazvenko et al., 2007). A determination of whether foraging disruptions incur fitness consequences would require information on or estimates of the energetic requirements of the affected individuals and the relationship between prey availability, foraging effort and success, and the life history stage of the animal.

Respiration rates vary naturally with different behaviors and alterations to breathing rate as a function of acoustic exposure can be expected to co-occur with other behavioral reactions, such as a flight response or an alteration in diving. However, respiration rates in and of themselves may be representative of annoyance or an acute stress response. Various studies have shown that respiration rates may either be unaffected or could increase, depending on the species and signal characteristics, again highlighting the importance in understanding species differences in the tolerance of underwater noise when determining the potential for impacts resulting from anthropogenic sound exposure ( e.g., Kastelein et al., 2001; 2005; 2006; Gailey et al., 2007). For example, harbor porpoise respiration rates increased in response to pile driving sounds at and above a received broadband SPL of 136 dB (zero-peak SPL: 151 dB (referenced to 1 micropascal (re 1 μPa); SEL of a single strike (SEL_ss ): 127 dB re 1 μPa² -s) (Kastelein et al., 2013).

Avoidance is the displacement of an individual from an area or migration path as a result of the presence of a sound or other stressors and is one of the most obvious manifestations of disturbance in marine mammals (Richardson et al., 1995). For example, gray whales ( Eschrictius robustus) are known to change direction—deflecting from customary migratory paths—in order to avoid noise from seismic surveys (Malme et al., 1984). Harbor porpoises, Atlantic white-sided dolphins ( Lagenorhynchus actusus), and minke whales ( Balaenoptera acutorostrata) have demonstrated avoidance in response to vessels during line transect surveys (Palka and Hammond, 2001). In addition, beluga whales in the St. Lawrence Estuary in Canada have been reported to increase levels of avoidance with increased boat presence by way of increased dive durations and swim speeds, decreased surfacing intervals, and by bunching together into groups (Blane and Jaakson, 1994). Avoidance may be short-term, with animals returning to the area once the noise has ceased ( e.g., Bowles et al., 1994; Goold, 1996; Stone et al., 2000; Morton and Symonds, 2002; Gailey et al., 2007). Longer-term displacement is possible, however, which may lead to changes in abundance or distribution patterns of the affected species in the affected region if habituation to the presence of the sound does not occur ( e.g., Blackwell et al., 2004; Bejder et al., 2006; Teilmann et al., 2006).

A flight response is a dramatic change in normal movement to a directed and rapid movement away from the perceived location of a sound source. The flight response differs from other avoidance responses in the intensity of the response ( e.g., directed movement, rate of travel). Relatively little information on flight responses of marine mammals to anthropogenic signals exist, although observations of flight responses to the presence of predators have occurred (Connor and Heithaus, 1996; Bowers et al., 2018). The result of a flight response could range from brief, temporary exertion and displacement from the area where the signal provokes flight to, in extreme cases, marine mammal strandings (England et al., 2001). However, it should be noted that response to a perceived predator does not necessarily invoke flight (Ford and Reeves, 2008), and whether individuals are solitary or in groups may influence the response.

Behavioral disturbance can also impact marine mammals in more subtle ways. Increased vigilance may result in costs related to diversion of focus and attention ( i.e., when a response consists of increased vigilance, it may come at the cost of decreased attention to other critical behaviors such as foraging or resting). These effects have generally not been demonstrated for marine mammals, but studies involving fishes and terrestrial animals have shown that increased vigilance may substantially reduce feeding rates ( e.g., Beauchamp and Livoreil, 1997; Fritz et al., 2002; Purser and Radford, 2011). In addition, chronic disturbance can cause population declines through reduction of fitness ( e.g., decline in body condition) and subsequent reduction in reproductive success, survival, or both ( e.g., Harrington and Veitch, 1992; Daan et al., 1996; Bradshaw et al., 1998). However, Ridgway et al. (2006) reported that increased vigilance in bottlenose dolphins exposed to sound over a 5-day period did not cause any sleep deprivation or stress effects.

Many animals perform vital functions, such as feeding, resting, traveling, and socializing, on a diel cycle (24-hour cycle). Disruption of such functions resulting from reactions to stressors such as sound exposure are more likely to be significant if they last more than one diel cycle or recur on subsequent days (Southall et al., 2007). Consequently, a behavioral response lasting less than 1 day and not recurring on subsequent days is not considered particularly severe unless it could directly affect reproduction or survival (Southall et al., 2007). Note that there is a difference between multi-day substantive ( i.e., meaningful) behavioral reactions and multi-day anthropogenic activities. For example, just because an activity lasts for multiple days does not necessarily mean that individual animals are either exposed to activity-related stressors for multiple days or, further, exposed in a manner resulting in sustained multi-day substantive behavioral responses.

Physiological Stress Responses —An animal's perception of a threat may be sufficient to trigger stress responses consisting of some combination of behavioral responses, autonomic nervous system responses, neuroendocrine responses, or immune responses ( e.g., Selye, 1950; Moberg, 2000). In many cases, an animal's first and sometimes most economical (in terms of energetic costs) response is behavioral avoidance of the potential stressor. Autonomic nervous system responses to stress typically involve changes in heart rate, blood pressure, and gastrointestinal activity. These responses have a relatively short duration and may or may not have a significant long-term effect on an animal's fitness.

Neuroendocrine stress responses often involve the hypothalamus-pituitary-adrenal system. Virtually all neuroendocrine functions that are affected by stress, including immune competence, reproduction, metabolism, and behavior—are regulated by pituitary hormones. Stress-induced changes in the secretion of pituitary hormones have been implicated in failed reproduction, altered metabolism, reduced immune competence, and behavioral disturbance ( e.g., Moberg, 1987; Blecha, 2000). Increases in the circulation of glucocorticoids are also equated with stress (Romano et al., 2004).

The primary distinction between stress (which is adaptive and does not normally place an animal at risk) and ( printed page 66305) “distress” is the cost of the response. During a stress response, an animal uses glycogen stores that can be quickly replenished once the stress is alleviated. In such circumstances, the cost of the stress response would not pose serious fitness consequences. However, when an animal does not have sufficient energy reserves to satisfy the energetic costs of a stress response, energy resources must be diverted from other functions. This state of distress will last until the animal replenishes its energetic reserves sufficient to restore normal function.

Relationships between these physiological mechanisms, animal behavior, and the costs of stress responses are well-studied through controlled experiments and for both laboratory and free-ranging animals ( e.g., Holberton et al., 1996; Hood et al., 1998; Jessop et al., 2003; Krausman et al., 2004; Lankford et al., 2005; Ayres et al., 2012; Yang et al., 2021). Stress responses due to exposure to anthropogenic sounds or other stressors and their effects on marine mammals have also been reviewed (Fair and Becker, 2000; Romano et al., 2002b) and, more rarely, studied in wild populations ( e.g., Romano et al., 2002a). For example, Rolland et al. (2012) found that noise reduction from reduced ship traffic in the Bay of Fundy was associated with decreased stress in North Atlantic right whales ( Eubalaena glacialis). In addition, Lemos et al. (2022) observed a correlation between higher levels of fecal glucocorticoid metabolite concentrations (indicative of a stress response) and vessel traffic in gray whales. Yang et al. (2021) studied behavioral and physiological responses in captive bottlenose dolphins exposed to playbacks of “pile-driving-like” impulsive sounds, finding significant changes in cortisol and other physiological indicators but only minor behavioral changes. These and other studies lead to a reasonable expectation that some marine mammals will experience physiological stress responses upon exposure to acoustic stressors and that it is possible that some of these would be classified as “distress.” In addition, any animal experiencing TTS would likely also experience stress responses (NRC, 2005), however distress is an unlikely result of this project based on observations of marine mammals during previous, similar construction projects.

Norman (2011) reviewed environmental and anthropogenic stressors for Cook Inlet beluga whales. Lyamin et al. (2011) determined that the heart rate of a beluga whale increases in response to noise, depending on the frequency and intensity. Acceleration of heart rate in the beluga whale is the first component of the “acoustic startle response.” Romano et al. (2004) demonstrated that captive beluga whales exposed to high-level impulsive sounds ( i.e., seismic airgun and/or single pure tones up to 201 dB RMS) resembling sonar pings showed increased stress hormone levels of norepinephrine, epinephrine, and dopamine when TTS was reached. Thomas et al. (1990) exposed beluga whales to playbacks of an oil-drilling platform in operation (“Sedco 708,” 40 Hz-20 kHz; source level 153 dB). Ambient SPL at ambient conditions in the pool before playbacks was 106 dB and 134 to 137 dB RMS during playbacks at the monitoring hydrophone across the pool. All cell and platelet counts and 21 different blood chemicals, including epinephrine and norepinephrine, were within normal limits throughout baseline and playback periods, and stress response hormone levels did not increase immediately after playbacks. The difference between the Romano et al. (2004) and Thomas et al. (1990) studies could be the differences in the type of sound (seismic airgun and/or tone versus oil drilling), the intensity and duration of the sound, the individual's response, and the surrounding circumstances of the individual's environment. The sounds in the Thomas et al. (1990) study would be more similar to those anticipated by the Navy's activities; therefore, no more than short-term, low-hormone stress responses, if any, of Tamanend's bottlenose dolphins are expected as a result of exposure to noise from the Navy's activities.

Vocalizations and Auditory Masking —Since many marine mammals rely on sound to find prey, moderate social interactions, and facilitate mating (Tyack, 2008), noise from anthropogenic sound sources can interfere with these functions, but only if the noise spectrum overlaps with the hearing sensitivity of the receiving marine mammal (Southall et al., 2007; Clark et al., 2009; Hatch et al., 2012). Chronic exposure to excessive, though not high-intensity, noise could cause masking at particular frequencies for marine mammals that utilize sound for vital biological functions (Clark et al., 2009). Acoustic masking is when other noises such as from human sources interfere with an animal's ability to detect, recognize, or discriminate between acoustic signals of interest ( e.g., those used for intraspecific communication and social interactions, prey detection, predator avoidance, navigation) (Richardson et al., 1995; Erbe et al., 2016). Therefore, under certain circumstances, marine mammals whose acoustical sensors or environment are being severely masked could also be impaired from maximizing their performance fitness in survival and reproduction. The ability of a noise source to mask biologically important sounds depends on the characteristics of both the noise source and the signal of interest ( e.g., signal-to-noise ratio, temporal variability, direction), in relation to each other and to an animal's hearing abilities ( e.g., sensitivity, frequency range, critical ratios, frequency discrimination, directional discrimination, age or TTS hearing loss), and existing ambient noise and propagation conditions (Hotchkin and Parks, 2013).

Marine mammals vocalize for different purposes and across multiple modes, such as whistling, echolocation click production, calling, and singing. Changes in vocalization behavior in response to anthropogenic noise can occur for any of these modes and may result from a need to compete with an increase in background noise or may reflect increased vigilance or a startle response. For example, in the presence of potentially masking signals, humpback whales and killer whales ( Orcinus orca) have been observed to increase the length of their songs (Miller et al., 2000; Fristrup et al., 2003) or vocalizations (Foote et al., 2004), respectively, while North Atlantic right whales have been observed to shift the frequency content of their calls upward while reducing the rate of calling in areas of increased anthropogenic noise (Parks et al., 2007). Fin whales ( Balaenoptera physalus) have also been documented lowering the bandwidth, peak frequency, and center frequency of their vocalizations under increased levels of background noise from large vessels (Castellote et al., 2012). Other alterations to communication signals have also been observed. For example, gray whales, in response to playback experiments exposing them to vessel noise, have been observed increasing their vocalization rate and producing louder signals at times of increased outboard engine noise (Dahlheim and Castellote, 2016). Alternatively, in some cases, animals may cease sound production during production of aversive signals (Bowles et al., 1994, Wisniewska et al., 2016).

Under certain circumstances, marine mammals experiencing significant masking could also be impaired from maximizing their performance fitness in survival and reproduction. Therefore, when the coincident (masking) sound is human made, it may be considered ( printed page 66306) harassment when disrupting or altering critical behaviors. It is important to distinguish TTS and PTS, which persist after the sound exposure, from masking, which occurs during the sound exposure. Because masking (without resulting in TS) is not associated with abnormal physiological function, it is not considered a physiological effect, but rather a potential behavioral effect (though not necessarily one that would be associated with harassment).

The frequency range of the potentially masking sound is important in determining any potential behavioral impacts. For example, low-frequency signals may have less effect on high-frequency echolocation sounds produced by odontocetes but are more likely to affect detection of mysticete communication calls and other potentially important natural sounds such as those produced by surf and some prey species. The masking of communication signals by anthropogenic noise may be considered as a reduction in the communication space of animals ( e.g., Clark et al., 2009) and may result in energetic or other costs as animals change their vocalization behavior ( e.g., Miller et al., 2000; Foote et al., 2004; Parks et al., 2007; Di Iorio and Clark, 2010; Holt et al., 2009). Masking can be reduced in situations where the signal and noise come from different directions (Richardson et al., 1995), through amplitude modulation of the signal, or through other compensatory behaviors, including modifications of the acoustic properties of the signal or the signaling behavior (Hotchkin and Parks, 2013). Masking can be tested directly in captive species ( e.g., Erbe, 2008), but in wild populations it must be either modeled or inferred from evidence of masking compensation. There are few studies addressing real-world masking sounds likely to be experienced by marine mammals in the wild ( e.g., Branstetter et al., 2013).

Masking occurs in the frequency band that the animals utilize, is more likely to occur in the presence of broadband, relatively continuous noise sources such as vibratory pile driving. Energy distribution of vibratory pile driving sounds spans a broad frequency spectrum, and is anticipated to be within the audible range of marine mammals present in the proposed action area. Since noises generated from the proposed construction activities are mostly concentrated at low frequencies (<2 kHz), these activities likely have less effect on mid-frequency echolocation sounds produced by odontocetes (toothed whales). However, lower frequency noises are more likely to affect detection of communication calls and other potentially important natural sounds such as surf and prey noise. Low-frequency noise may also affect communication signals when they occur near the frequency band for noise and thus reduce the communication space of animals ( e.g., Clark et al., 2009) and cause increased stress levels ( e.g., Holt et al., 2009). Unlike TS, masking, which can occur over large temporal and spatial scales, can potentially affect the species at population, community, or even ecosystem levels, in addition to individual levels. Masking affects both senders and receivers of the signals, and at higher levels for longer durations, could have long-term chronic effects on marine mammal species and populations. However, the noise generated by the Navy's proposed activities will only occur intermittently, across an estimated 54 days during the authorization period in a relatively small area focused around the proposed construction site. Thus, while the Navy's proposed activities may mask some acoustic signals that are relevant to the daily behavior of marine mammals, the short-term duration and limited areas affected make it very unlikely that the fitness of individual marine mammals would be impacted.

Potential Effects on Marine Mammal Habitat

The Navy's proposed activities would primarily have localized, temporary impacts on marine mammal habitat, including prey, by increasing in-water SPLs. Increased noise levels may affect acoustic habitat and adversely affect marine mammal prey in the vicinity of the project areas (see discussion below). Elevated levels of underwater noise would ensonify the project area where both fishes and mammals occur and could affect foraging success. Additionally, marine mammals may avoid the area during the proposed construction activities; however, displacement due to noise is expected to be temporary and is not expected to result in long-term effects on the individuals or populations.

The total area likely impacted by the Navy's activities is relatively small compared to the available habitat in the East River and the Cumberland Sound. Avoidance by potential prey ( e.g., fish and benthic invertebrates) of the immediate area due to increased noise is possible. Any behavioral avoidance by fish or marine mammals of the disturbed area would still leave significantly large areas of fish and marine mammal foraging habitat in the nearby vicinity.

The proposed project will replace existing NSB Kings Bay infrastructure and remain within the same footprint. The nearshore estuarine habitat is in an area of high military vessel and submarine traffic. According to observations by NSB Kings Bay SMEs, dolphins generally transit through the project area but do not use the area within construction site footprint. Temporary, intermittent, and short-term habitat alteration may result from increased noise levels during the proposed construction activities. Effects on marine mammals will be limited to temporary displacement from pile installation and removal noise, and effects on prey species will be similarly limited in time and space.

Water quality —Temporary and localized reduction in water quality will occur as a result of in-water construction activities. Most of this effect would occur during the installation and removal of piles when bottom sediments are disturbed. The installation and removal of piles would disturb bottom sediments and may cause a temporary increase in suspended sediment in the project area. During pile extraction, sediment attached to the pile moves vertically through the water column until gravitational forces cause it to slough off under its own weight. The small resulting sediment plume is expected to settle out of the water column within a few hours. Studies of the effects of turbid water on fish (marine mammal prey) suggest that concentrations of suspended sediment can reach thousands of milligrams per liter before an acute toxic reaction is expected (Burton, 1993).

Effects to turbidity and sedimentation are expected to be short-term, minor, and localized. Since the tides are so strong in the area, following the completion of sediment-disturbing activities, suspended sediments in the water column should dissipate and quickly return to background levels in all construction scenarios. Turbidity within the water column has the potential to reduce the level of oxygen in the water and irritate the gills of prey fish species in the proposed project area. However, turbidity plumes associated with the project would be temporary and localized, and fish in the proposed project area would be able to move away from and avoid the areas where plumes may occur. Therefore, it is expected that the impacts on prey fish species from turbidity, and therefore on marine mammals, would be minimal and temporary. In general, the area likely impacted by the proposed construction activities is relatively small ( printed page 66307) compared to the available marine mammal habitat in the East River and Cumberland Sound.

Potential Effects on Prey —Sound may affect marine mammals through impacts on the abundance, behavior, or distribution of prey species ( e.g., crustaceans, cephalopods, fishes, zooplankton). Marine mammal prey varies by species, season, and location and, for some, is not well documented. Studies regarding the effects of noise on known marine mammal prey are described here.

Fishes utilize the soundscape and components of sound in their environment to perform important functions such as foraging, predator avoidance, mating, and spawning ( e.g., Zelick et al., 1999; Fay, 2009). Depending on their hearing anatomy and peripheral sensory structures, which vary among species, fishes hear sounds using pressure and particle motion sensitivity capabilities and detect the motion of surrounding water (Fay et al., 2008). The potential effects of noise on fishes depends on the overlapping frequency range, distance from the sound source, water depth of exposure, and species-specific hearing sensitivity, anatomy, and physiology. Key impacts to fishes may include behavioral responses, hearing damage, barotrauma (pressure-related injuries), and mortality.

Fish react to sounds that are especially strong and/or intermittent low-frequency sounds, and behavioral responses such as flight or avoidance are the most likely effects. Short duration, sharp sounds can cause overt or subtle changes in fish behavior and local distribution. The reaction of fish to noise depends on the physiological state of the fish, past exposures, motivation ( e.g., feeding, spawning, migration), and other environmental factors. Hastings and Popper (2005) identified several studies that suggest fish may relocate to avoid certain areas of sound energy. Additional studies have documented effects of pile driving on fishes ( e.g., Scholik and Yan, 2001, 2002; Popper and Hastings, 2009). Several studies have demonstrated that impulse sounds might affect the distribution and behavior of some fishes, potentially impacting foraging opportunities or increasing energetic costs ( e.g., Fewtrell and McCauley, 2012; Pearson et al., 1992; Skalski et al., 1992; Santulli et al., 1999; Paxton et al., 2017). However, some studies have shown no or slight reaction to impulse sounds ( e.g., Peña et al., 2013; Wardle et al., 2001; Jorgenson and Gyselman, 2009; Cott et al., 2012). More commonly, though, the impacts of noise on fishes are temporary.

SPLs of sufficient strength have been known to cause injury to fishes and fish mortality (summarized in Popper et al., 2014). However, in most fish species, hair cells in the ear continuously regenerate and loss of auditory function likely is restored when damaged cells are replaced with new cells. Halvorsen et al. (2012b) showed that a TTS of 4 to 6 dB was recoverable within 24 hours for one species. Impacts would be most severe when the individual fish is close to the source and when the duration of exposure is long. Injury caused by barotrauma can range from slight to severe and can cause death and is most likely for fish with swim bladders. Barotrauma injuries have been documented during controlled exposure to impact pile driving (Halvorsen et al., 2012a; Casper et al., 2013, 2017).

Fish populations in the proposed project area that serve as marine mammal prey could be temporarily affected by noise from impact pile installation and vibratory pile removal. The frequency range in which fishes generally perceive underwater sounds is 50 to 2,000 Hz, with peak sensitivities below 800 Hz (Popper and Hastings, 2009). Fish behavior or distribution may change, especially with strong and/or intermittent sounds that could harm fishes. High underwater SPLs have been documented to alter behavior, cause hearing loss, and injure or kill individual fish by causing serious internal injury (Hastings and Popper, 2005).

Zooplankton is a food source for several marine mammal species, as well as a food source for fish that are then preyed upon by marine mammals. Population effects on zooplankton could have indirect effects on marine mammals. Data are limited on the effects of underwater sound on zooplankton species, particularly sound from construction (Erbe et al., 2019). Popper and Hastings (2009) reviewed information on the effects of human-generated sound and concluded that no substantive data are available on whether the sound levels from pile driving, seismic activity, or any human-made sound would have physiological effects on invertebrates. Any such effects would be limited to the area very near (1 to 5 m) the sound source and would result in no population effects because of the relatively small area affected at any one time and the reproductive strategy of most zooplankton species (short generation, high fecundity, and very high natural mortality). No adverse impact on zooplankton populations is expected to occur from the specified activity due, in part, to large reproductive capacities and naturally high levels of predation and mortality of these populations. Any mortalities or impacts that might occur would be negligible.

The greatest potential impact to marine mammal prey during construction would occur during impact pile driving. In-water construction activities would only be initiated during daylight hours, allowing fish to forage and transit the project area undisturbed in the evening. Vibratory pile extraction may elicit behavioral reactions from fishes such as temporary avoidance of the area but is unlikely to cause injuries to fishes or have persistent effects on local fish populations. Construction would have minimal permanent and temporary impacts on benthic invertebrate species, a marine mammal prey source. In addition, it should be noted that the area in question is likely low-quality habitat since it is already highly developed and experiences a high level of anthropogenic noise from normal NSB Kings Bay operations and other vessel traffic.

Potential Effects on Foraging Habitat

The TRF wharf interface repairs project is not expected to result in any habitat-related effects that could cause significant or long-term negative consequences for individual marine mammals or their populations, since installation and removal of in-water piles would be temporary and intermittent. The total seafloor area affected by pile installation and removal is a very small area compared to the vast foraging area available to marine mammals outside this project area. NSB Kings Bay is a developed military installation that does not likely provide high-quality habitat for prey species. The area impacted by the proposed project is relatively small compared to the available habitat outside the area. The proposed project overlaps with small portion of the Small and Resident Population BIA designated for the SGES stock of Tamanend's bottlenose dolphins. While this area is biologically important to the stock, the maximum anticipated ensonified area is approximately 1 km² , representing less and 1 percent of the 410 km² BIA. Any behavioral avoidance by fish of the disturbed area would still leave significantly large areas of fish and marine mammal foraging habitat in the nearby vicinity. As described in the preceding, the potential for the Navy's construction to affect the availability of prey to marine mammals or to meaningfully impact the quality of physical or acoustic habitat is considered to be insignificant. Therefore, impacts of the project are not ( printed page 66308) likely to have adverse effects on marine mammal foraging habitat in the proposed project area.

In summary, given the project area is an industrialized Navy base, is a relatively small area being affected, as well as the temporary and mostly transitory nature of the proposed construction activities, any adverse effects from the Navy's activities on prey habitat or prey populations are expected to be minor and temporary. The most likely impact to fishes at the project site would be temporary avoidance of the area. Any behavioral avoidance by fish of the disturbed area would still leave significantly large areas of fish and marine mammal foraging habitat in the nearby vicinity. Thus, we preliminarily conclude that impacts of the specified activities are not likely to have more than short-term adverse effects on any prey habitat or populations of prey species. Further, any impacts to marine mammal habitat are not expected to result in significant or long-term consequences for individual marine mammals, or to contribute to adverse impacts on their populations.

Estimated Take of Marine Mammals

This section provides an estimate of the number of incidental takes proposed for authorization through the IHA, which will inform NMFS' consideration of “small numbers,” the negligible impact determinations, and impacts on subsistence uses.

Harassment is the only type of take expected to result from these activities. Except with respect to certain activities not pertinent here, section 3(18) of the MMPA defines “harassment” as any act of pursuit, torment, or annoyance, which: (i) has the potential to injure a marine mammal or marine mammal stock in the wild (Level A harassment); or (ii) has the potential to disturb a marine mammal or marine mammal stock in the wild by causing disruption of behavioral patterns, including, but not limited to, migration, breathing, nursing, breeding, feeding, or sheltering (Level B harassment).

Authorized takes would be by Level B harassment only, in the form behavioral reactions and/or TTS for individual marine mammals resulting from exposure to vibratory pile extraction and impact pile driving. Based on the nature of the activity and the anticipated effectiveness of the mitigation measures ( i.e., clearance and shutdown zones) discussed in detail below in the Proposed Mitigation section, Level A harassment is neither anticipated nor proposed to be authorized.

As described previously, no serious injury or mortality is anticipated or proposed to be authorized for this activity. Below we describe how the proposed take numbers are estimated.

For acoustic impacts, generally speaking, we estimate take by considering: (1) acoustic criteria above which NMFS believes there is some reasonable potential for marine mammals to be behaviorally harassed or incur some degree of AUD INJ; (2) the area or volume of water that will be ensonified above these levels in a day; (3) the density or occurrence of marine mammals within these ensonified areas; and, (4) the number of days of activities. We note that while these factors can contribute to a basic calculation to provide an initial prediction of potential takes, additional information that can qualitatively inform take estimates is also sometimes available ( e.g., previous monitoring results or average group size). Below, we describe the factors considered here in more detail and present the proposed take estimates.

Acoustic Criteria

NMFS recommends the use of acoustic criteria that identify the received level of underwater sound above which exposed marine mammals would be reasonably expected to be behaviorally harassed (equated to Level B harassment) or to incur AUD INJ of some degree (equated to Level A harassment). Criteria for AUD INJ, and hearing group categories are available in NMFS' Updated Technical Guidance (NMFS, 2024) and are reflected below in the Level A harassment section.

Level B Harassment —Though significantly driven by received level, the onset of behavioral disturbance from anthropogenic noise exposure is also informed to varying degrees by other factors related to the source or exposure context ( e.g., frequency, predictability, duty cycle, duration of the exposure, signal-to-noise ratio, distance to the source), the environment ( e.g., bathymetry, other noises in the area, predators in the area), and the receiving animals (hearing, motivation, experience, demography, life stage, depth) and can be difficult to predict ( e.g., Southall et al., 2007; 2021; Ellison et al., 2012). Based on what the available science indicates and the practical need to use a threshold based on a metric that is both predictable and measurable for most activities, NMFS typically uses a generalized acoustic threshold based on received level to estimate the onset of behavioral harassment. NMFS generally predicts that marine mammals are likely to be behaviorally harassed in a manner considered to be Level B harassment when exposed to underwater anthropogenic noise above root-mean-squared sound pressure levels (RMS SPL) of 120 dB (referenced to 1 micropascal (re 1 μPa)) for continuous ( e.g., vibratory pile driving, drilling) and above RMS SPL 160 dB re 1 μPa for non-explosive impulsive ( e.g., seismic airguns) or intermittent ( e.g., scientific sonar) sources. Generally speaking, take estimates by Level B harassment are based on these behavioral harassment thresholds are expected to include any likely takes by TTS as, in most cases, the likelihood of TTS occurs at distances from the source less than those at which behavioral harassment is likely. TTS of a sufficient degree can manifest as behavioral harassment, as reduced hearing sensitivity and the potential reduced opportunities to detect important signals (conspecific communication, predators, prey) may result in changes in behavior patterns that would not otherwise occur.

Navy's proposed activity includes the use of continuous (vibratory pile removal) and impulsive (impact pile driving) sources, and therefore the RMS SPL thresholds of 120 and 160 dB re 1 μPa are applicable.

Level A Harassment —NMFS' Updated Technical Guidance for Assessing the Effects of Anthropogenic Sound on Marine Mammal Hearing (Version 3.0) (Updated Technical Guidance, 2024) identifies dual criteria to assess AUD INJ (Level A harassment) to five different underwater marine mammal groups (based on hearing sensitivity) as a result of exposure to noise from two different types of sources (impulsive or non-impulsive) (table 5). Navy's proposed activity includes the use of impulsive (impact driving) and non-impulsive (vibratory driving) sources.

The 2024 Updated Technical Guidance criteria include both updated thresholds and updated weighting functions for each hearing group. The thresholds are provided in the table below. The references, analysis, and methodology used in the development of the criteria are described in NMFS' 2024 Updated Technical Guidance, which may be accessed at: www.fisheries.noaa.gov/​national/​marine-mammal-protection/​marine-mammal-acoustic-technical-guidance-other-acoustic-tools. ( printed page 66309)

Ensonified Area

Here, we describe operational and environmental parameters of the activity that are used in estimating the area ensonified above the acoustic thresholds, including source levels and transmission loss (TL) coefficient.

The source levels assumed for pile installation and removal are based on reviews of measurements of the same or similar types and dimensions from similar coastal construction projects (table 6).

Transmission Loss (TL) is the decrease in acoustic intensity as an acoustic pressure wave propagates out from a source. TL parameters vary with frequency, temperature, sea conditions, current, source and receiver depth, water depth, water chemistry, and bottom composition and topography. The general formula for underwater TL is:

TL = B × Log10(R1/R2),

where:

TL = transmission loss in dB,

B = transmission loss coefficient,

R1 = the distance of the modeled SPL from the driven pile, and

R2 = the distance from the driven pile of the initial measurement.

This formula neglects loss due to scattering and absorption, which is assumed to be zero here. The degree to which underwater sound propagates away from a sound source depends on various factors, most notably the water bathymetry and the presence or absence of reflective or absorptive conditions, including in-water structures and sediments. Spherical spreading occurs in a perfectly unobstructed (free-field) environment not limited by depth or water surface, resulting in a 6-dB reduction in sound level for each doubling of distance from the source (20*log[range]). Cylindrical spreading occurs in an environment in which sound propagation is bounded by the water surface and sea bottom, resulting in a reduction of 3 dB in sound level for each doubling of distance from the source (10*log[range]). A practical spreading value of 15 is often used in shallow-water coastal conditions, such as those found in the East River at NSB King Bay. In these environments, sound waves repeatedly reflect off the surface and bottom, reflecting an expected propagation environment between spherical and cylindrical spreading-loss conditions.

Site-specific TL data for the East River is not available; therefore, the default coefficient of 15 is used to calculate distances to the Level A harassment and Level B harassment thresholds. Assuming practicable spreading and other assumptions regarding the source characteristics and operational logistics ( e.g., source level, number of strikes per pile, number of piles per day), the Navy and NMFS calculated distances to the Level A harassment and Level B harassment thresholds and associated ensonified areas. Because an ensonified area associated with Level A harassment is more technically challenging to predict given the accounting for a cumulative energy component that changes over time, to assist applicants in assessing the potential for Level A harassment without the need for complex modeling, NMFS developed an optional User Spreadsheet tool to accompany the 2024 Updated Technical Guidance (see www.fisheries.noaa.gov/​national/​marine-mammal-protection/​marine-mammal-acoustic-technical-guidance-other-acoustic-tools). This relatively simple tool can be used to calculate a Level A harassment isopleth distance for use in conjunction with marine mammal density or occurrence data to predict the amount of take that may occur incidental to an activity. We note that, because of some of the assumptions in the methods underlying this spreadsheet tool, we anticipate that the resulting isopleths would typically be overestimates, which may lead to an overestimate of potential exposures from Level A harassment. However, this optional tool offers the best way to estimate isopleth distances when more ( printed page 66310) sophisticated modeling methods are not available or practical. For stationary sources such as vibratory pile removal and impact pile driving, the optional User Spreadsheet tool predicts the distance at which, if a marine mammal remained at that distance for the duration of the activity, it would be expected to incur AUD INJ. Inputs used in the optional User Spreadsheet tool (table 7), and the resulting estimated isopleths (table 8), are reported below.

Marine Mammal Occurrence and Take Estimation

In this section, we provide information regarding the occurrence of marine mammals in the project area, including density and site-specific observational data, to inform the take calculations.

SMEs stationed at NSB Kings Bay informed the Navy that two to three groups of dolphins are observed each day year-round in the immediate vicinity of the TRF wharf interface repairs project. Group sizes during these observations typically range from three to four individuals per group. Similarly, Speakman et al. (2023) conducted vessel-based photo-identification surveys from Altamaha Sound to Cumberland Sound from 2010 through 2021. Based on cluster analysis, five distinct social clusters were identified within the SGES stock, with an overall mean group size of 6.7 dolphins across all five clusters. The utilization distributions of clusters 1 and 2 were located closest to the project area, with mean group sizes of 5.1 and 5.5 individuals, respectively.

Although data from Speakman et al. (2023) indicate that local cluster group sizes range from 5.1 to 5.5 individuals, site-specific observational data from NSB Kings Bay indicates a typical maximum group size of four individuals. Considering the availability of site-specific observational data, the Navy proposed to estimate take assuming a group size of four dolphins and that two groups of dolphins could transit through the project area each day. NMFS evaluated the data from Speakman et al. (2023) along with the observational data from NSB Kings Bay and preliminarily concurs that the Navy's approach for estimating dolphin occurrence in the project area during the proposed activities is appropriate.

Take by Level B harassment was calculated using the following formula:

Level B Harassment = Group Size (4) × Groups/Day(2) × Vibratory Pile Removal and Impact Pile Driving Days (54)

Therefore, the total estimated take equates to 432 takes of Tamanend's bottlenose dolphins by Level B harassment.

Take by Level A harassment of marine mammals is not expected to occur during the specified activities. The largest modeled Level A harassment distance would occur during impact driving of four 20-inch square concrete piles (10.9 m for high-frequency cetaceans) (table 8). During construction, the Navy proposes to implement a 15-m clearance zone prior to the start of construction and 15-m shutdown zone for both vibratory pile removal and impact pile driving. It is highly unlikely that any Tamanend's ( printed page 66311) bottlenose dolphins would enter and remain within the relatively small Level A harassment distance long enough to incur an AUD INJ. Considering that the Navy did not request take by Level A harassment and that it is highly unlikely an animal would remain within such a small area, NMFS does not expect take by Level A harassment to occur. Therefore, take by Level A harassment of Tamanend's bottlenose dolphins is not expected and is not proposed for authorization.

Proposed Mitigation

In order to issue an IHA under section 101(a)(5)(D) of the MMPA, NMFS must set forth the permissible methods of taking pursuant to the activity, and other means of effecting the least practicable impact on the species or stock and its habitat, paying particular attention to rookeries, mating grounds, and areas of similar significance, and on the availability of the species or stock for taking for certain subsistence uses (latter not applicable for this action). NMFS regulations require applicants for incidental take authorizations to include information about the availability and feasibility (economic and technological) of equipment, methods, and manner of conducting the activity or other means of effecting the least practicable adverse impact upon the affected species or stocks, and their habitat (50 CFR 216.104(a)(11)).

In evaluating how mitigation may or may not be appropriate to ensure the least practicable adverse impact on species or stocks and their habitat, as well as subsistence uses where applicable, NMFS considers two primary factors:

(1) The manner in which, and the degree to which, the successful implementation of the measure(s) is expected to reduce impacts to marine mammals, marine mammal species or stocks, and their habitat. This considers the nature of the potential adverse impact being mitigated (likelihood, scope, range). It further considers the likelihood that the measure will be effective if implemented (probability of accomplishing the mitigating result if implemented as planned), the likelihood of effective implementation (probability implemented as planned); and

(2) The practicability of the measures for applicant implementation, which may consider such things as cost and impact on operations.

The mitigation requirements described in the following were proposed by the Navy in its adequate and complete application or are the result of subsequent coordination between NMFS and the Navy. The Navy has agreed that all of the mitigation measures are practicable. NMFS has fully reviewed the specified activities and the mitigation measures to determine if the mitigation measures would result in the least practicable adverse impact on marine mammals and their habitat, as required by the MMPA, and has determined the proposed measures are appropriate. NMFS describes these below as proposed mitigation requirements and has included them in the proposed IHA. These measures must be adhered to unless in the case of human safety concerns or pile refusal/instability.

Pre- and Post-Activity Monitoring

Prior to the start of daily in-water construction activities, or whenever a break in pile driving of 30 minutes or longer occurs, Protected Species Observers (PSOs) would observe for marine mammals at least 30 minutes (pre-clearance monitoring) through 30 minutes post-completion of pile removal or pile driving activities. Pre-start clearance monitoring must be conducted during periods of visibility sufficient for the PSOs to determine that the clearance zones indicated in table 10 are clear of marine mammals.

Soft Start Procedures for Impact Driving

Soft-start procedures provide additional protection to marine mammals by providing warning and/or giving marine mammals a chance to leave the area prior to the hammer operating at full capacity. The Navy must use soft start techniques when impact pile driving. Soft start requires contractors to provide an initial set of three strikes at reduced energy, followed by a 30-second waiting period, then two subsequent reduced-energy strike sets. A soft start must be implemented at the start of each day's impact pile driving and at any time following cessation of impact pile driving for a period of 30 minutes or longer. Soft start is not applicable to vibratory pile removal.

Clearance and Shutdown Zones

For pile installation and removal activities, the Navy proposes to implement clearance and shutdown zones with radial distance of 15 m. The purpose of clearance and shutdown zones is to reduce the probability or scope of proximal acute impacts by taking steps in real time ( i.e., delay commencement of or stopping an activity) once a higher-risk scenario is identified. If a marine mammal is observed within a clearance or shutdown zone, or if a marine mammal enters or is observed within the clearance or shutdown zone while construction is ongoing, pile driving or pile removal must be delayed or halted. Operations may only resume once the animal is visually confirmed outside the zone or 15 minutes have passed without a re-detection.

Construction supervisors and crews, PSOs, and relevant Navy staff must avoid direct physical interaction with marine mammals during construction activities. If marine mammals come within 10 m of such activity, operations must cease, to avoid direct interaction. If an activity is delayed or halted due to the presence of a marine mammal, the activity may not commence or resume until either the animal has voluntarily exited and been visually confirmed beyond the shutdown zone indicated in table 10, or 15 minutes have passed without re-detection of the animal.

Finally, construction activities must be halted upon observation of a species for which incidental take is not authorized or a species for which incidental take has been authorized but the authorized number of takes has been met entering or within any clearance or shutdown zone. If a marine mammal ( printed page 66312) species not covered under the IHA enters a clearance or shutdown zone, all in-water activities would cease until the animal leaves the zone or has not been observed for at least 15 minutes. Pile driving may proceed if the unauthorized species is observed leaving the clearance and shutdown zone or if 15 minutes have passed since the last observation.

Protected Species Observers

The number and placement of PSOs during all construction activities (described in the Proposed Monitoring and Reporting section) would be designed to ensure that the entire shutdown zone is visible. The Navy would employ a minimum of one PSO for impact pile driving and three PSOs would be on duty during all vibratory pile extraction activities for the TRF wharf interface repairs project.

Based on our evaluation of the applicant's proposed measures, NMFS has preliminarily determined that the proposed mitigation measures provide the means of effecting the least practicable impact on the affected species or stocks and their habitat, paying particular attention to rookeries, mating grounds, and areas of similar significance.

Proposed Monitoring and Reporting

In order to issue an IHA for an activity, section 101(a)(5)(D) of the MMPA states that NMFS must set forth requirements pertaining to the monitoring and reporting of such taking. The MMPA implementing regulations at 50 CFR 216.104(a)(13) indicate that requests for authorizations must include the suggested means of accomplishing the necessary monitoring and reporting that will result in increased knowledge of the species and of the level of taking or impacts on populations of marine mammals that are expected to be present while conducting the activities. Effective reporting is critical both to compliance as well as ensuring that the most value is obtained from the required monitoring.

Monitoring and reporting requirements prescribed by NMFS should contribute to improved understanding of one or more of the following:

• Occurrence of marine mammal species or stocks in the area in which take is anticipated (e.g., presence, abundance, distribution, density);
• Nature, scope, or context of likely marine mammal exposure to potential stressors/impacts (individual or cumulative, acute or chronic), through better understanding of: (1) action or environment (e.g., source characterization, propagation, ambient noise); (2) affected species ( e.g., life history, dive patterns); (3) co-occurrence of marine mammal species with the activity; or (4) biological or behavioral context of exposure ( e.g., age, calving or feeding areas);
• Individual marine mammal responses (behavioral or physiological) to acoustic stressors (acute, chronic, or cumulative), other stressors, or cumulative impacts from multiple stressors;
• How anticipated responses to stressors impact either: (1) long-term fitness and survival of individual marine mammals; or (2) populations, species, or stocks;
• Effects on marine mammal habitat (e.g., marine mammal prey species, acoustic habitat, or other important physical components of marine mammal habitat); and
• Mitigation and monitoring effectiveness.

The monitoring and reporting requirements described in the following were proposed by Navy in its adequate and complete application and are the result of subsequent coordination between NMFS and Navy. The Navy has agreed to the requirements. NMFS describes these below as requirements and has included them in the proposed IHA.

To ensure strict adherence to all terms and conditions of the proposed authorization and to guarantee that all monitoring and reporting requirements are diligently met, the Navy has established enhanced internal administrative and oversight protocols. A natural resources specialist at Naval Facilities Engineering Systems Command, Southeast (NAVFAC SE) will maintain and share a consolidated master list of all relevant points of contact, mitigating risks associated with staff turnover and ensuring project notifications consistently reach the correct personnel. Prior to the start of construction, the assigned specialist will conduct a dedicated on-site meeting with project-level personnel to review specific permit requirements and establish a fixed, calendar-based schedule for the delivery of monitoring reports for review. Additionally, quarterly conferences between NAVFAC SE and Office of the Chief of Naval Operations staff will provide leadership with regular status updates and promptly address any perceived issues.

All PSOs must be NMFS-approved and have no other assigned tasks during monitoring periods. At least one PSO would have prior experience performing the duties of a PSO during construction activity pursuant to a NMFS-issued ITA.

During all vibratory pile removal and impact pile driving for the Navy's TRF wharf interface repairs project, PSOs would monitor from various stations around the project area (see figures 8 through 18 in section 5.2 of the Navy's application). PSOs would document marine mammal presence and behavior. During vibratory pile extraction, a minimum of three PSOs will monitor for marine mammals from stations shown in figures 10, 11, 14, 15, 18, and 19 of the Navy's application. During impact pile driving, a minimum of one PSO will monitor for marine mammals from the pile driving location. For activities requiring multiple PSOs, if the stations presented in figures 8 through 19 of the Navy's application do not provide adequate visual coverage of the required clearance, shutdown, and Level A and Level B harassment zones, the Navy will select alternative land-based monitoring stations that meet the criteria described above.

Monitoring would be conducted 30 minutes before, during, and 30 minutes after the specified activities. Additionally, PSOs would record all incidents of marine mammal occurrence, regardless of distance from activity, and would document any ( printed page 66313) behavioral reactions in concert with distance from piles being driven or removed. Pile driving activities include the time installing or removing a single pile or series of piles, as long as the time elapsed between uses of the pile driving equipment is no more than 30 minutes.

The Navy would abide by all monitoring and reporting measures contained within the IHA, if issued, and their Protected Species Monitoring and Mitigation Plans (see NMFS' website at www.fisheries.noaa.gov/​national/​marine-mammal-protection/​incidental-take-authorizations-construction-activities). NMFS describes these below as requirements and has included them in the proposed IHA.

Reporting

The Navy would be required to submit a draft report(s) on all construction activities and marine mammal monitoring results to NMFS within 90 days of the completion of monitoring, or 60 days prior to the requested issuance of any subsequent IHAs or similar activity at the same location, whichever comes first. The information required to be collected and reported to NMFS is included in the draft IHA available at www.fisheries.noaa.gov/​national/​marine-mammal-protection/​incidental-take-authorizations-construction-activities. In summary, the report would include, but not be limited to, information regarding activities that occurred, marine mammal sighting data, and whether mitigative actions were taken or could not be taken. The Navy would also be required to submit reports on any observed injured or dead marine mammals. If the death or injury was clearly caused by the specified activity, the Navy would immediately cease the specified activities until NMFS is able to review the circumstances of the incident and determine what, if any, additional measures are appropriate to ensure compliance with the terms of the IHA. The Navy would not resume its activities until notified by NMFS.

Specific proposed mitigation, monitoring, and reporting requirements can be found in the draft IHAs found at www.fisheries.noaa.gov/​national/​marine-mammal-protection/​incidental-take-authorizations-construction-activities.

Negligible Impact Analysis and Determination

NMFS has defined negligible impact as an impact resulting from the specified activity that cannot be reasonably expected to, and is not reasonably likely to, adversely affect the species or stock through effects on annual rates of recruitment or survival (50 CFR 216.103). A negligible impact finding is based on the lack of likely adverse effects on annual rates of recruitment or survival ( i.e., population-level effects). An estimate of the number of takes alone is not enough information on which to base an impact determination. In addition to considering estimates of the number of marine mammals that might be “taken” through harassment, NMFS considers other factors, such as the likely nature of any impacts or responses ( e.g., intensity, duration), the context of any impacts or responses ( e.g., critical reproductive time or location, foraging impacts affecting energetics), as well as effects on habitat, and the likely effectiveness of the mitigation. We also assess the number, intensity, and context of estimated takes by evaluating this information relative to population status. Consistent with the 1989 preamble for NMFS' implementing regulations (54 FR 40338, September 29, 1989), the impacts from other past and ongoing anthropogenic activities are incorporated into this analysis via their impacts on the baseline ( e.g., as reflected in the regulatory status of the species, population size and growth rate where known, ongoing sources of human-caused mortality, or ambient noise levels).

NMFS has identified key factors which may be employed to assess the level of analysis necessary to conclude whether potential impacts associated with a specified activity should be considered negligible. These include, but are not limited to, the type and magnitude of taking, the amount and importance of the available habitat for the species or stock that is affected, the duration of the anticipated effect to the species or stock, and the status of the species or stock. The potential effects of the specified activities on Tamanend's bottlenose dolphins are discussed below.

Pile driving and pile removal associated with the Navy's TRF wharf interface repairs project, as outlined previously, have the potential to disturb or displace marine mammals. Specifically, the specified activities may result in incidental take, in the form of Level B harassment only, from underwater sounds generated by pile driving and pile removal. Potential takes could occur if dolphins are present in zones ensonified above the threshold for Level B harassment identified above while activities are underway.

The Navy's proposed activities and associated impacts would occur within a limited, confined area of the stocks' range. In-water work would occur in the vicinity of the NSB Kings Bay, and sound from the specified would be blocked by the shoreline of Crab Island and the East River. The intensity and duration of take by Level B harassment would be minimized through use of mitigation measures described herein. Further, the presence of dolphins in the area is expected to be limited, as the NSB Kings Bay is a military facility that experiences high levels of military vessel traffic. Dolphins that occur within the project area are expected to primarily transit through the East River, thereby reducing the potential for prolonged exposure or behavioral disturbance. In addition, NMFS does not anticipate that serious injury or mortality will occur as a result of the Navy's proposed activities given the nature of the activities, even in the absence of required mitigation.

Effects on individuals that are taken by Level B harassment in the form of behavioral disruption, on the basis of reports in the literature as well as monitoring from other similar activities, will likely be limited to reactions such as avoidance, increased swimming speeds, increased surfacing time, or decreased foraging (if such activity were occurring) ( e.g., Ridgway et al., 1997; Nowacek et al., 2007; Thorson and Reyff, 2006; Kendall and Cornick, 2015; Goldbogen et al., 2013b; Blair et al., 2015; Wisniewska et al., 2016; Piwetz et al., 2021). Most likely, individuals would simply move away from the sound source and temporarily avoid the area where pile driving is occurring. If sound produced by project activities is sufficiently disturbing, animals are likely to simply avoid the area while the activities are occurring, particularly as the project is located at naval base that experiences high levels of military vessel traffic. We expect that any avoidance of the project area by dolphins would be temporary in nature and that any marine mammals that avoid the project area during construction would not be permanently displaced. In-water construction would be limited to daylight hours from 1 hour after sunrise to 1 hour before sunset; thus, dolphins would be able to transit through or forage in the project area at night when construction activities are inactive. Therefore, short-term avoidance of the project area and energetic impacts of interrupted foraging or other important behaviors is unlikely to affect the reproduction or survival of individual marine mammals, and the effects of behavioral disturbance on individuals is not likely to accrue in a manner that would affect the rates of ( printed page 66314) recruitment or survival of any affected stock.

In addition to behavioral disturbances, exposure to elevated underwater sound levels may result in TTS or acoustic masking in some individuals present within the ensonified areas. Any TTS or masking experienced by dolphins would be low-level, short-term, and fully recoverable upon leaving the area. While minor acoustic masking or temporary reductions in hearing sensitivity could briefly interfere detections of acoustic cues, such as social communication whistles or echolocation clicks used for foraging, these effects would be localized and brief. Because pile driving is intermittent, acoustic masking and TTS will not disrupt communication or foraging to a degree that would cause chronic stress or affect individual health, survival, or reproduction.

As stated in the Monitoring and Reporting section, the Navy would implement shutdown zones. No take by Level A harassment is proposed for authorization and thus is not expected to adversely impact individual fitness, let alone annual rates of recruitment or survival for the affected species or stock.

This project is also not expected to have significant adverse effects on affected marine mammals' habitats. The project activities will not modify existing marine mammal habitat for a significant amount of time. The activities may cause some fish to leave the area of disturbance, thus temporarily impacting marine mammals' foraging opportunities in a limited portion of the foraging range. However, given the short duration of the activities and the relatively small area of the habitat that may be affected, the impacts to marine mammal habitat are not expected to cause significant or long-term negative consequences.

Tamanend's bottlenose dolphins are common in the project area, with SMEs at NSB Kings Bay observing two to three groups of dolphins each day with group sizes ranging from three to four individuals per group. Speakman et al. (2023) conducted bottlenose dolphin surveys from the Altamaha Sound to the Cumberland Sound from 2010 through 2021, encompassing the range of the SGES stock. Analyses of these 163 surveys identified 5 distinct social clusters with minimal spatial overlap in habitat use. The core range of only one social cluster was located 2 nmi from the project site. Frequent sightings of bottlenose dolphins by NSB Kings Bay SMEs, combined with data from Speakman et al. (2023), indicate that project activities will primarily affect this single social cluster, with some individuals likely transiting the project area repeatedly.

While the total number of takes proposed for authorization represents a notable proportion of SGES stock bottlenose dolphins, the majority of these exposures are expected to occur within this single social cluster whose core range is near the project site. Consequently, the requested take does not represent a broad impact to the entire stock, but rather repeated exposures of the same individuals. Although this social cluster may experience frequent exposures to elevated underwater sound levels, such intermittent disturbances are not expected to result in chronic stress or physical injury that would reduce the fitness, survival, or reproductive success of any individual. Animals from this social cluster are expected to temporarily avoid or quickly transit through the active project area during in-water construction, minimizing their exposure duration. Furthermore, the ensonified areas affect only a small portion of their overall habitat, leaving the majority of their core range undisturbed, and in-water construction will occur intermittently over 54 non-consecutive days during daylight hours rather than continuously. Because the anticipated impacts are localized to a small subset of the population and are not expected to affect the health or fitness of those individuals, the take proposed to be authorized will not affect annual rates of recruitment or survival for the SGES stock of Tamanend's bottlenose dolphins.

The Navy's TRF wharf interface repairs project is situated within the Small and Resident Population BIA for SGES stock of Tamanend's bottlenose dolphins. The area from the Altamaha Sound to the Cumberland Sound is designated as a Small and Resident Population BIA for SGES stock of Tamanend's bottlenose dolphins due to their limited geographic range. The ensonified areas from the specified activities are relatively small, representing less than 1 percent of the 410 km² area of the BIA. Therefore, ample high-quality habitat remains available to dolphins in the areas surrounding the East River to support individuals that may be temporarily displaced. Because the acoustic stressors occur intermittently and the physical footprint of the project is localized, the disturbance within the Small and Resident Population BIA will be short-term in duration and spatially confined. Consequently, the proposed action is not expected to diminish the value or functional role of the habitat within the BIA for the SGES stock of Tamanend's bottlenose dolphins, and the overall effects on the designated BIA are expected to be de minimis.

In summary and as described above, the following factors primarily support our preliminary determination that the impacts resulting from this activity are not expected to adversely affect any of the species or stocks through effects on annual rates of recruitment or survival:

• No Level A harassment, serious injury or mortality is anticipated or proposed to be authorized;
• Proposed take by Level B harassment does not represent a broad, stock-wide impact, but rather repeated, low-level exposures to a single social cluster whose core range is adjacent to the project site;
• Level B harassment would be primarily in the form of behavioral disturbance, resulting in avoidance of the project area around where impact pile driving and vibratory pile removal are occurring;
• Some temporary low-level TTS or acoustic masking may occur, briefly limiting the detection of acoustic cues (such as social communication whistles and echolocation) for short durations within a confined footprint, but these effects will be fully recoverable and will not affect individual fitness or survival;
• Behavioral disturbance will be temporary and localized; while dolphins may briefly avoid or quickly transit active work zones during pile driving, intermittent pauses during daylight hours and complete shutdown at night ensure continuous opportunities for undisturbed transiting and foraging;
• The ensonified areas, and project area in general, are small relative to the overall habitat of the SGES stock of Tamanend's bottlenose dolphins, and acoustic impacts within the Small and Resident Population BIA will be spatially minimal and short in duration, with construction occurring only over 54 non-consecutive days;
• Nearby areas of similar habitat value around the East River and the Cumberland Sound are available for marine mammals that may temporarily avoid the project area during construction activities; and
• Effects on marine mammal habitat and prey will be short-term and localized, causing no significant or long-term negative consequences to foraging success or population fitness.

Based on the analysis contained herein of the likely effects of the specified activity on marine mammals and their habitat, and taking into consideration the implementation of the proposed monitoring and mitigation measures, NMFS preliminarily finds ( printed page 66315) that the total marine mammal take from the proposed activity will have a negligible impact on all affected marine mammal species or stocks.

Small Numbers

As noted previously, only take of small numbers of marine mammals may be authorized under section 101(a)(5)(A) and (D) of the MMPA for specified activities other than military readiness activities. The MMPA does not define small numbers and so, in practice, where estimated numbers are available, NMFS compares the number of individuals taken to the most appropriate estimation of abundance of the relevant species or stock in our determination of whether an authorization is limited to small numbers of marine mammals. When the predicted number of individuals to be taken is fewer than one-third of the species or stock abundance, the take is considered to be of small numbers (86 FR 5322, January 19, 2021). Additionally, other qualitative factors may be considered in the analysis, such as the temporal or spatial scale of the activities.

The total abundance of the SGES stock of Tamanend's bottlenose dolphins is unknown in current NMFS Stock Assessment Reports because existing estimates are over 8 years old. However, empirical photo identification data provides the best available information regarding the minimum number of individuals residing within the geographic range of the SGES stock and establishes a baseline for the small numbers analysis. Across 163 surveys conducted between 2010 and 2021, Speakman et al. (2023) cataloged 768 distinctly marked individuals, accounting for 57 percent of the total individuals observed. Because the cumulative discovery curve did not reach an asymptote and the distinctively marked individuals represent only 57 percent of those observed, the total population size of the SGES stock is expected to exceed 768 individuals.

The best available science indicates that a much smaller number of unique individuals than the majority of the stock would be exposed repeatedly over the project duration. In-water construction for the proposed project will occur within a very small geographic area over 54 non-consecutive days. The geographic range for the SGES stock extends from the Altamaha Sound in the north to the Cumberland Sound in the south. This area is designated as a Small and Resident Population BIA for the SGES stock and encompasses an area over 410 km² . The largest ensonified area from proposed project activities is approximately 1 km² , which represents less than 1 percent of the SGES stock's overall geographic range.

Speakman et al. (2023) demonstrated that individuals identified during the 2010 through 2023 surveys are partitioned into five distinct social clusters, each exhibiting strong site fidelity with minimal spatial overlap of core areas. The proposed projects action area is located approximately 2 nmi from the core distribution of only one of these five social structures (Speakman et al. 2023). The remaining four social clusters reside further from the project footprint and are not expected to occur in the action area or be incidentally taken during the specified activities. High site fidelity indicates that dolphins from cluster 2 may experience repeated daily exposures over the 54 days of in water work, resulting in 432 instances of take, while the actual number of unique individuals impacted remains small.

Because the specified activity is restricted to a small geographic area relative to the SGES stock's range, and because dolphins in this this stock exhibit strong site fidelity within their core range, only one of five social clusters are likely to be within the project area. Considering these factors, it is reasonable to conclude that the number of unique individuals taken constitutes a small number of unique individuals taken constitutes a small number, representing less than one-third of the SGES stock population. Based on the analysis contained herein of the proposed activity (including the proposed mitigation and monitoring measures) and the anticipated take of marine mammals, NMFS preliminarily finds that small numbers of marine mammals would be taken relative to the population size of the affected species or stocks.

Unmitigable Adverse Impact Analysis and Determination

There are no relevant subsistence uses of the affected marine mammal stocks or species implicated by this action. Therefore, NMFS has determined that the total taking of affected species or stocks would not have an unmitigable adverse impact on the availability of such species or stocks for taking for subsistence purposes.

Endangered Species Act

Section 7(a)(2) of the ESA of 1973 (16 U.S.C. 1531 et seq.) requires that each Federal agency ensures that any action it authorizes, funds, or carries out is not likely to jeopardize the continued existence of any endangered or threatened species or result in the destruction or adverse modification of designated critical habitat. To ensure ESA compliance for the issuance of incidental take authorizations, NMFS consults internally whenever we propose to authorize take for ESA-listed species.

No incidental take of ESA-listed species is proposed for authorization or expected to result from this activity. Therefore, NMFS has determined that formal consultation under section 7 of the ESA is not required for this action.

Proposed Authorization

As a result of these preliminary determinations, NMFS proposes to issue an IHA to the Navy for the TRF wharf interface repairs project in the East River at NSB Kings Bay, Georgia, provided the previously mentioned mitigation, monitoring, and reporting requirements are incorporated. A draft of the proposed IHA can be found at: www.fisheries.noaa.gov/​national/​marine-mammal-protection/​incidental-take-authorizations-construction-activities.

Request for Public Comments

We request comment on our analyses, the proposed authorization, and any other aspect of this notice. We also request comment on the potential renewal of this proposed IHA as described in the paragraph below. Please include with your comments any supporting data or literature citations to help inform decisions on the request for this IHA or a subsequent renewal IHA.

On a case-by-case basis, NMFS may issue a one-time, 1-year renewal IHA following notice to the public providing an additional 15 days for public comments when (1) up to another year of identical or nearly identical activities as described in the Description of Proposed Activity section of this notice is planned or (2) the activities as described in the Description of Proposed Activity section of this notice would not be completed by the time the IHA expires and a renewal would allow for completion of the activities beyond that described in the Dates and Duration section of this notice, provided all of the following conditions are met:

• A request for renewal is received no later than 60 days prior to the needed renewal IHA effective date (recognizing that the renewal IHA expiration date cannot extend beyond 1 year from expiration of the initial IHA).
• The request for renewal must include the following:

1. An explanation that the activities to be conducted under the requested renewal IHA are identical to the activities analyzed under the initial IHA, are a subset of the activities, or ( printed page 66316) include changes so minor ( e.g., reduction in pile size) that the changes do not affect the previous analyses, mitigation and monitoring requirements, or take estimates (with the exception of reducing the type or amount of take).

2. A preliminary monitoring report showing the results of the required monitoring to date and an explanation showing that the monitoring results do not indicate impacts of a scale or nature not previously analyzed or authorized.

• Upon review of the request for renewal, the status of the affected species or stocks, and any other pertinent information, NMFS determines that there are no more than minor changes in the activities, the mitigation and monitoring measures will remain the same and appropriate, and the findings in the initial IHA remain valid.

91 FR 66295
